Product Description

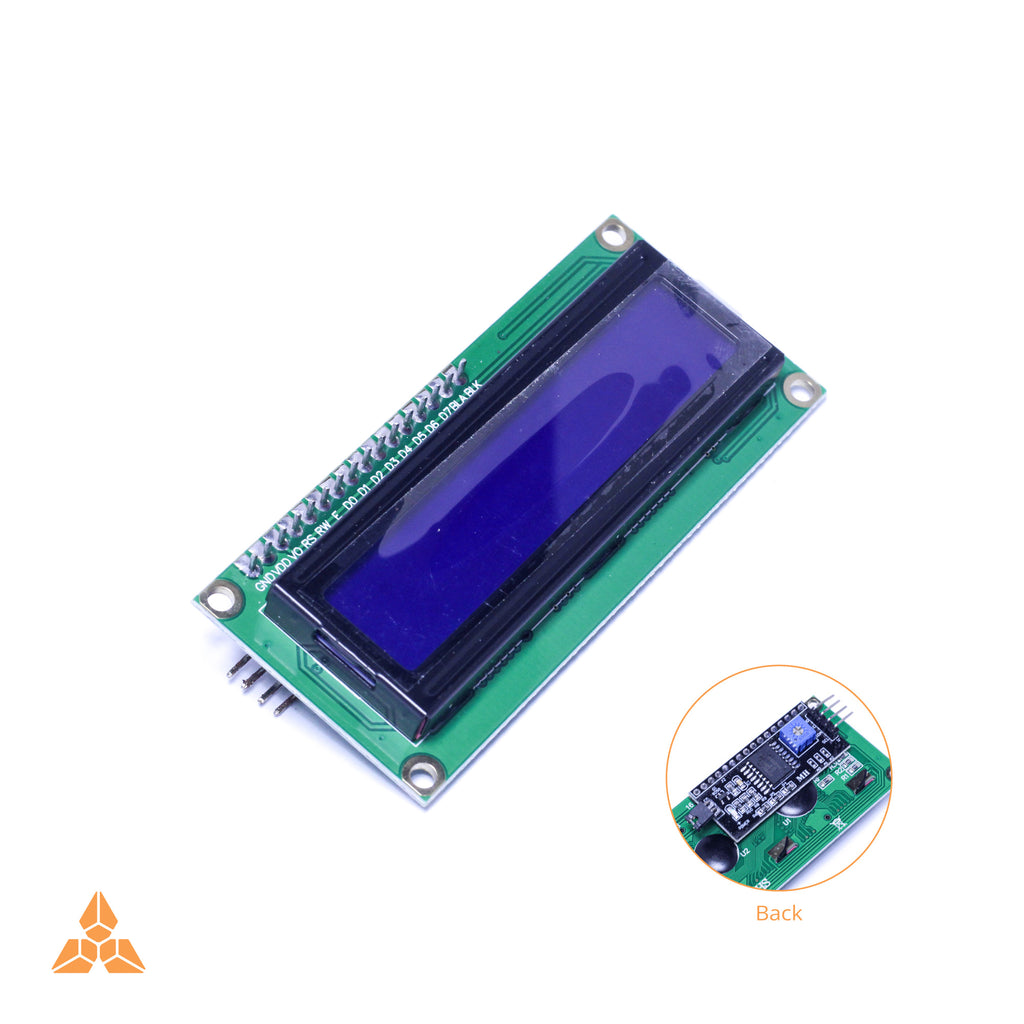

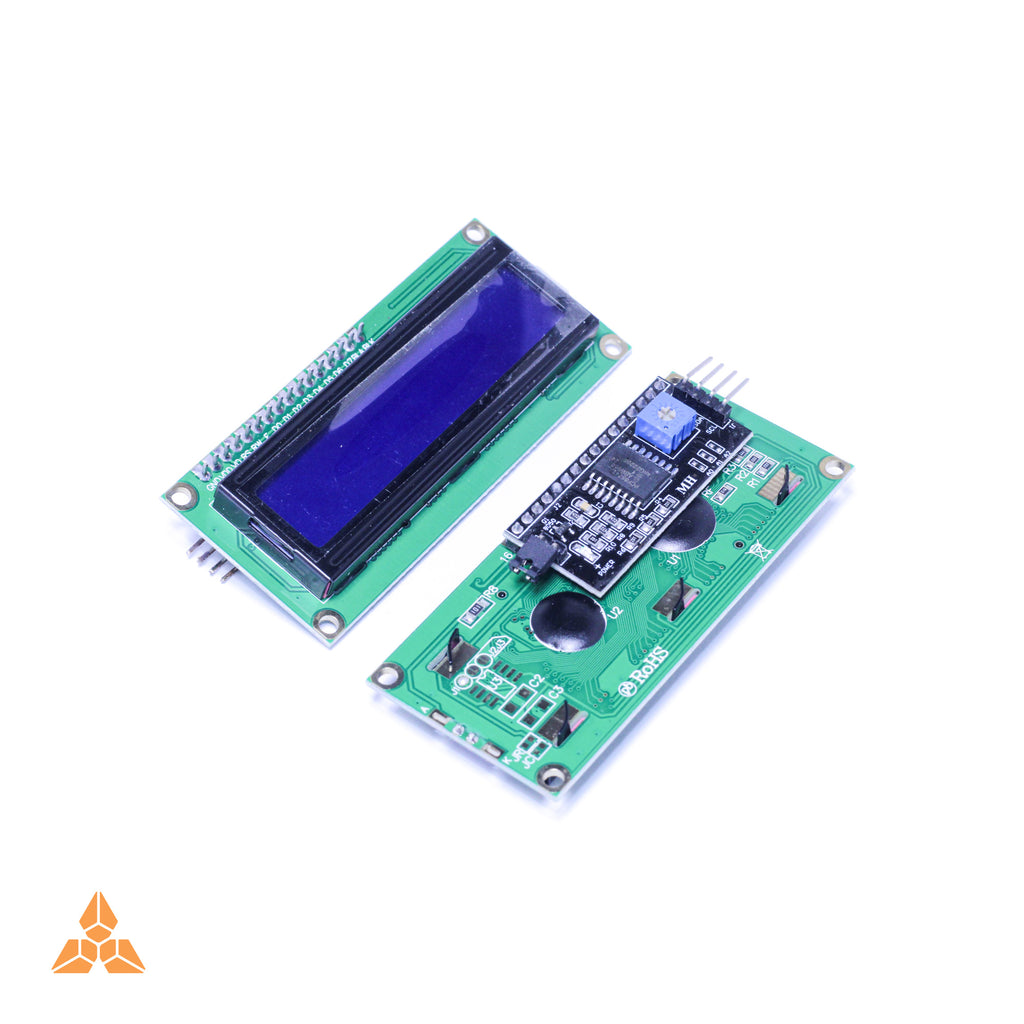

The LCD1602 (16x2) module with HD44780-compatible controller features a clear 16×2 character display with white text on a blue backlight. With a built-in I2C adapter, it reduces wiring to just SDA and SCL pins, making it easy to display text or sensor data using minimal coding.
Product Specifications
- Pixel Color White/Black
- Backlight Color Blue
- Input Voltage 5V
- Resolution 16 x 2 Characters
- Driver IC HD44780/Compatible
- Display Area 64 x 16mm
- Interface I2C Mode
- I2C Module PCF8574 (Soldered)
- Slave Address 0x27 (7bit) & 0x4E(8 bit)
- Product Dimension 80 x 36 mm
- Operation Range 0°C to 50°C
- Product Weight 50g
