Product Description

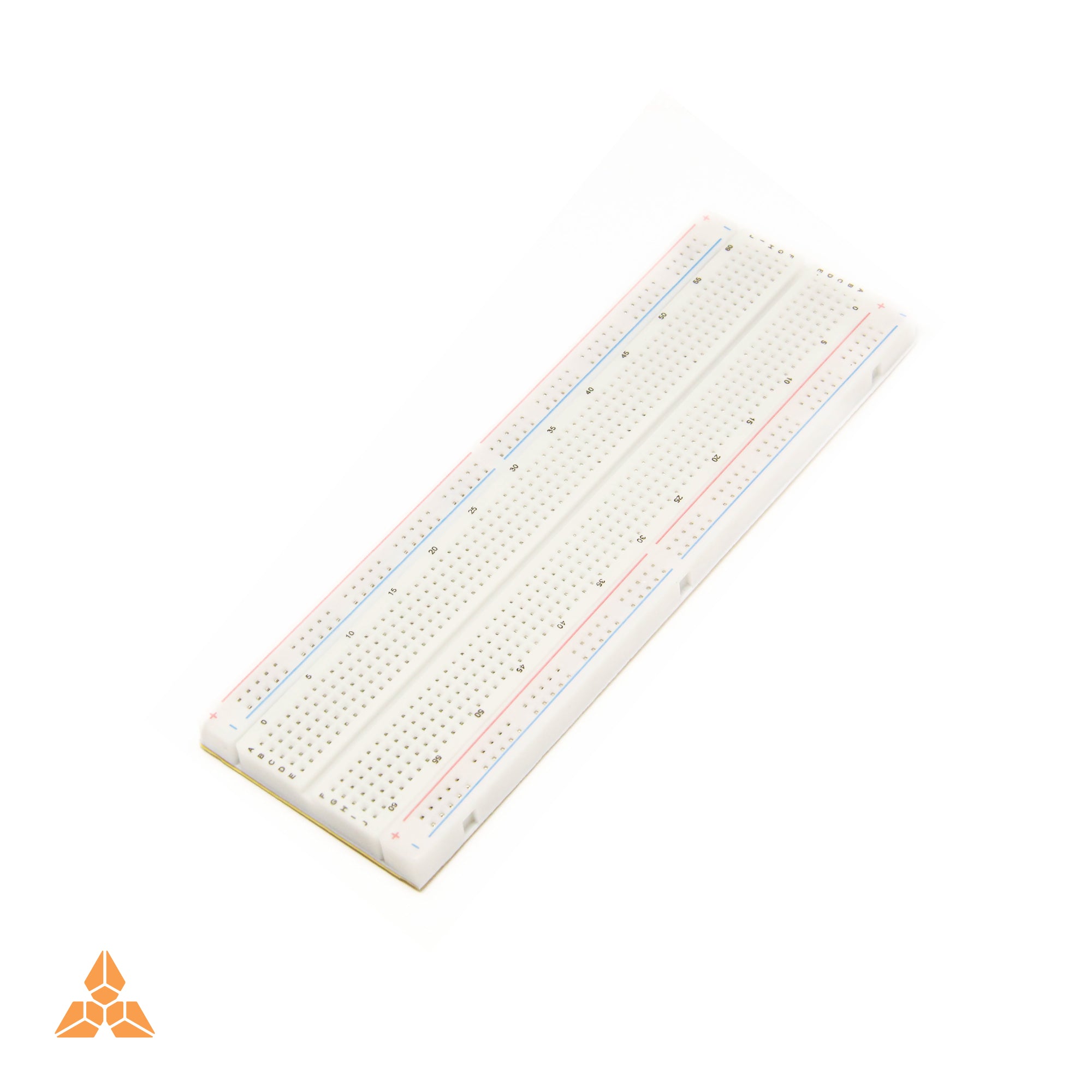

830-Hole Breadboard is a full-size, solderless prototyping base designed for building and testing complex electronic circuits without soldering. It features a standard layout with two sets of five-column terminal strips and four independent power rails, allowing for organized component placement and power distribution. The board is made of durable ABS plastic with internal nickel-plated phosphor bronze clips that ensure reliable electrical connections. Ideal for educational kits and professional R&D, it is fully compatible with standard 2.54mm pitch components like ICs, sensors, and jumper wires.
Product Specifications
- Total Tie Points 830 holes (630 in the main circuit area + 200 on power rails).
- Hole Pitch Standard 2.54 mm
- Wire Compatibility Accepts solid wires from 20 to 29 AWG (0.3–0.8 mm).
- Voltage/Current Limit Typically rated for 300V / 3A to 5A (low-power signals).
- Material ABS plastic body with internal metal contact clips.
- Visual Aids High-contrast printed color coordinates and red/blue polarity lines for the power rails.
- Dimensions (L x W) 16.5 cm x 5.5 cm
- Height 8.5 mm to 10 mm (including the self-adhesive foam backing).
- Weight Approximately 70 g to 85 g.
- Mounting Features a peel-off adhesive tape on the back for semi-permanent mounting to project chassis.
