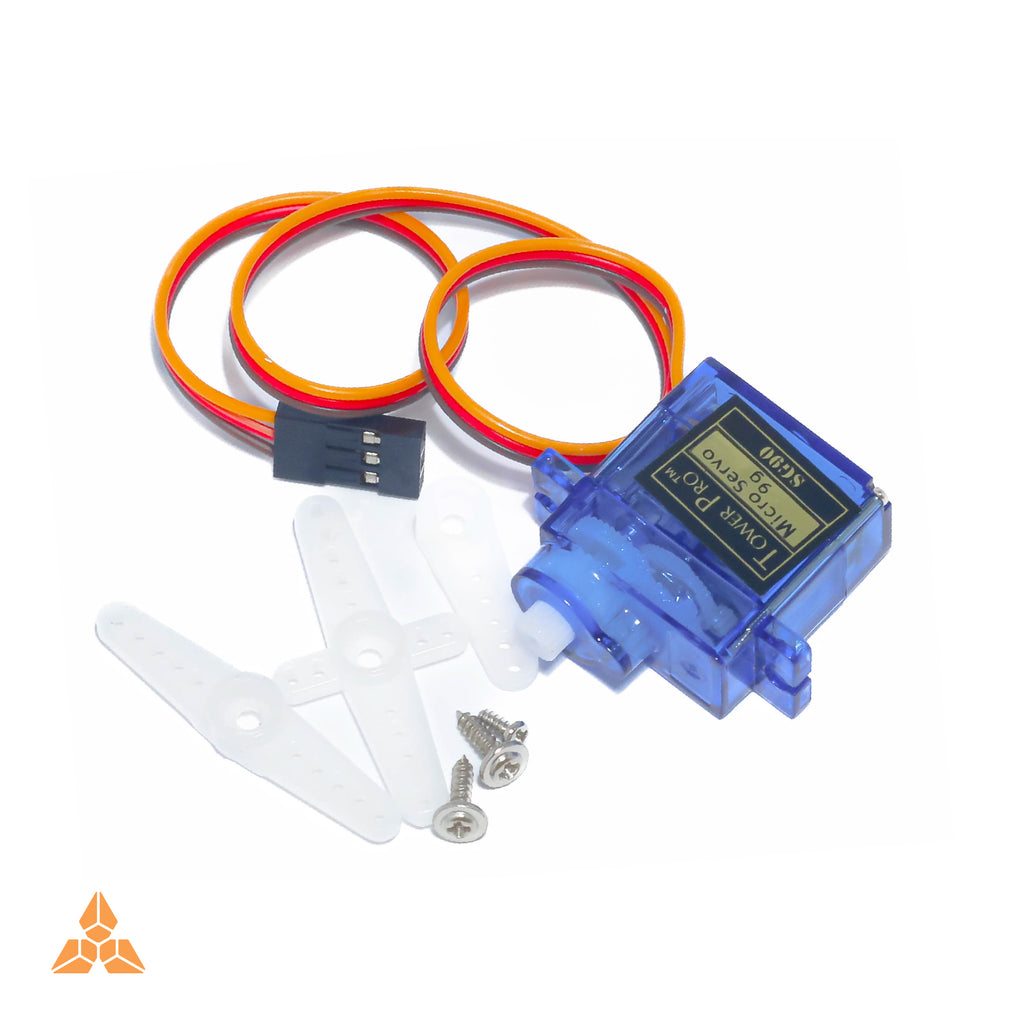

Servo Motor SG90 360 Degree
$1.25
Skip to product information
In stock
Servo Motor SG90 360 Degree
SKU: CPMNS008
$1.25
Product Description
| The Servo SG90 360 Degree is a lightweight micro continuous rotation servo motor designed for compact robotic drives and precision wheel movement. Unlike standard 180-degree servos that control angular position, this modified SG90 rotates continuously in both directions, allowing you to control speed and direction using standard PWM signals from microcontrollers like Arduino, ESP32, or Raspberry Pi. Operating at 4.8V to 6V with lightweight nylon gears and delivering up to 2.0 kg/cm of torque, it is the ideal choice for small 2WD mobile robots, mini conveyor systems, automated winches, and beginner STEM projects requiring continuous rotational motion in a tiny footprint |
Product Specifications
- Model SG90 360 Degree
- Operating Voltage 4.8V - 6.0V DC
- Rotation Type 360° Continuous Rotation
- Stall Torque 1.8 kg/cm (at 4.8V) - 2.0 kg/cm (at 6V)
- Operating Speed 110 RPM (at 4.8V) - 130 RPM (at 6V)
- Gear Type Plastic / Nylon
- Control Signal PWM (Adjusts speed and direction)
- Dimensions 22.8mm x 12.2mm x 28.5mm
- Weight 9g
